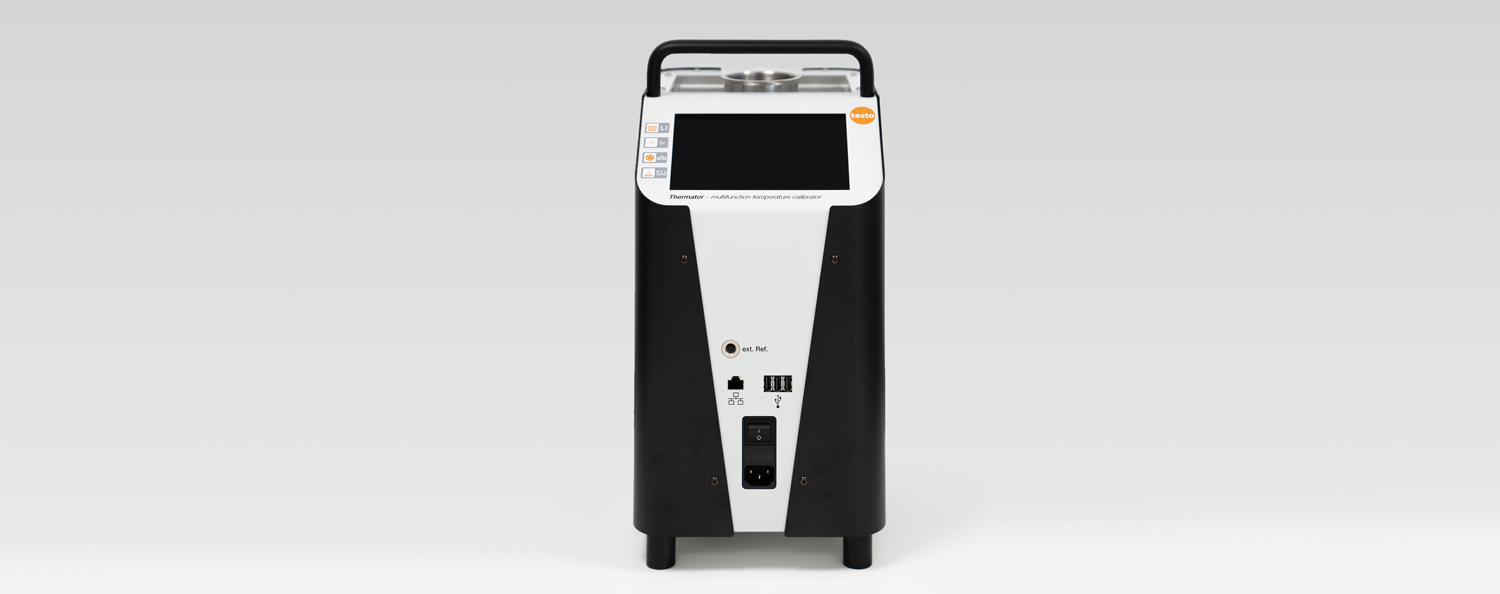

Thermator II
Flexible temperature calibrations with the multifunctional temperature calibrator Thermator II of your manufacturer independent infrared measuring instruments, thermal imaging cameras as well as air, immersion and surface sensors.
The Thermator II is a stationary as well as portable multifunctional temperature calibrator and can be used flexibly to perform temperature calibrations, enabling it to be used for servicepurposes as well as for industrial and laboratory tasks. The measuring insert provides you with four different operating modes Calibration of manufacturer independent temperature sensors, thermometers (contact measuring - also surface - and non-contact measuring), temperature switches/thermostats, resistance thermometers, thermocouples, infrared measuring devices and thermal imaging cameras . You can easily switch between dry block, microbath, infrared and surface functions. The specific inserts ensure easy and quick handling.
With the included insert accessories, you can easily change the sleeves and convert the Thermator II to the desired operating mode. The calibrator can be easily operated via the touch-sensitive screen, the touchscreen. For this purpose, predefined or own test tasks are used to control the calibration process.
Your advantages at a glance:
- Calibration range from -35°C to 165°C
- Precise regulation: Stability <±0.005 °C
- A simplified and intuitive operating concept thanks to the new touch display
- Program temperature sequences yourself or use preset programs
- Optimised axial and radial homogeneity due to dry block insert with Air Shield technology
- Location independent control via web interface
Dry block calibrator with Air Shield technology
The dry block insert can be used to calibrate air sensors with a sensor diameter of 3.5mm, 4.5mm and 6.5mm (individual bore diameters on request). Due to the novel Air Shield technology, particularly high stabilities of ±<0.001...0.005 °C and accuracies of ±0.099 °C are achieved. The insert sleeve enables an optimal thermal coupling from the block to the test specimen.

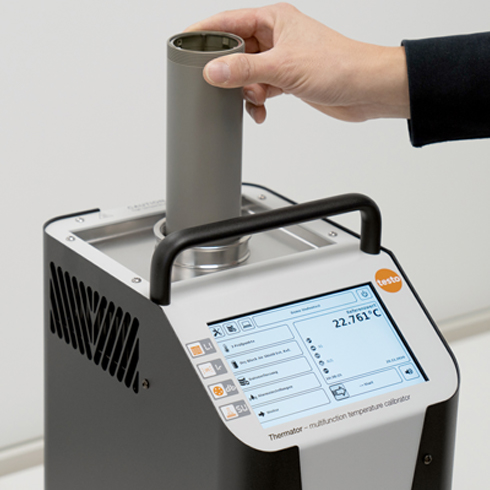

Micro calibration bath
For the calibration of temperature probes with special shapes and dimensions, such as an immersion probe, the micro calibration bath is the optimal solution. The direct contact of the immersion probes with the calibration liquid ensures a very good heat transfer. The infinitely variable control of the magnetic stirrer ensures constant mixing of the calibration liquid and thus creates a large measuring zone. The sensor basket is used to protect the temperature sensors.

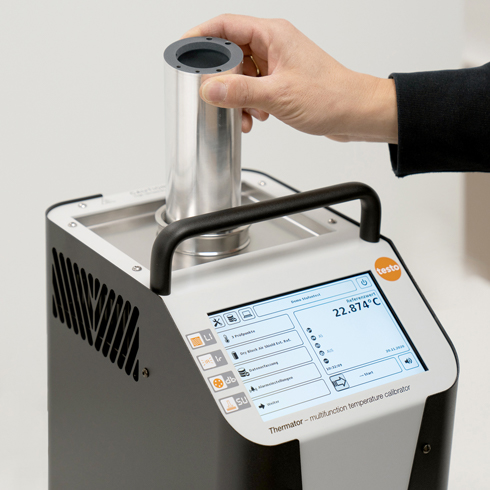

Infrared calibration
For the calibration of infrared measuring instruments and thermal imaging cameras, the Thermator II contains an infrared insert. With an emissivity of only 0.9994, the insert is the optimal blackbody. This is made possible by the surface coating and the special asymmetrical shape. Inside the infrared insert there is an additional hole in the sleeve to check the temperature with an external reference probe.

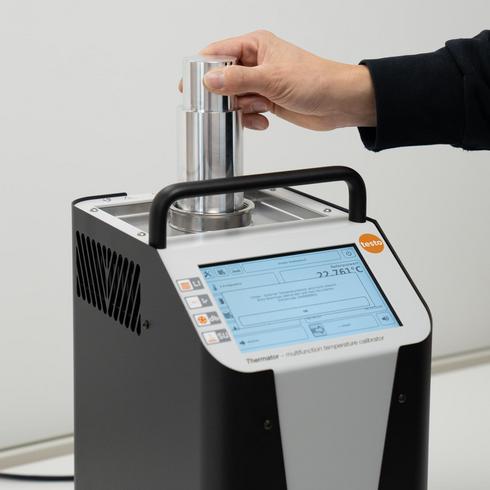

Surface calibration
Surface probes can be calibrated using the surface insert. Three holes are provided below the surface for checking the temperature using an external reference probe. Switching to the external reference ensures the optimum temperature reference point on the surface.
Information about the Thermator II
Here you will find the technical data and the operating instructions as well as the brochure of the multifunctional temperature calibrator - Thermator II.
